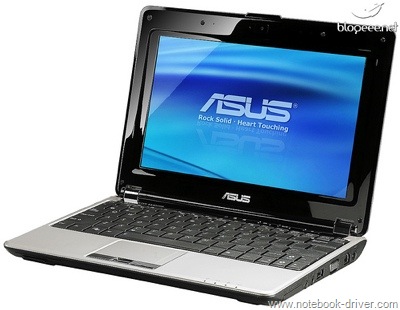

ASUS N10Jc Mini Notebook Technical Specifications


ASUS N10Jc Mini Notebook Technical Specifications

ASUS N10Jc Mini-Notebook Smart Technology, Smart You – A Fusion of Cutting-edge User-Centric Technologies and Style Designed for optimized mobility, the ASUS N10Jc is perfect for individuals constantly on the move. Sporting a 10.2" monitor, the N10Jc delivers a multi-sensory experience with a NVIDIA GeForce 9300M graphics card and Intel Atom processor.  Boasting a streamlined exterior with shiny metal-like inlaid patterns inspired by modernist art-deco, N Series notebooks deliver performance with style.

- Smart Technology – Super Hybrid Engine
- Smart Technology – Smart Bootups in 8 Seconds and Fast Internet Connectivity with Express Gate
- Smart Technology – Quick Logons through Facial Recognition
- Smart- Technology – One Touch Magnification Tool
- Smart Security - RF Biometric Fingerprint Reader

ASUS N10Jc Mini Notebook Technical Specifications:

Processor & Cache MemoryIntel Atom Processor N270 : 1.6 GHz 533 MHz, On-Die 512K Cache;
Operating SystemGenuine Windows Vista Home Basic,
Genuine Windows XP Home
Chipset_testIntel 945GSE
Main MemoryDDR2 533 MHz SDRAM, 1 x SODIMM socket for expansion up to 1GB SDRAM
Display10.2" WSVGA Color-Shine (Glare-type)

Video Graphics & MemoryNVIDIA GeForce 9300M GS with 256MB VRAM
Hard Drive2.5" 9.5mm SATA

160GB,5400rpm
Card Reader8 in 1 card reader, SD,MMC,MS,MS-Pro,mini SD w/ adapter,MS-Duo,MS-Pro Duo via adapter
Video Camera1.3 Mega Pixel web camera
(optional)

Fax/Modem/LAN/WLANIntegrated 802.11a/b/g/n or 802.11b/g
Built-in Bluetooth™ V2.0+EDR (optional)
LED Status IndicatorPower-on/Suspend
Battery Charging/full/low
Storage device access
Capital Lock
Bluetooth on status indicator
Interface1 x Express card
1 x Microphone-in jack
1 x Headphone-out jack (S/PDIF)
1 x VGA port/Mini D-sub 15-pin for external monitor
3 x USB 2.0 ports
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x WLAN On/Off Switch
1 x Bluetooth On/Off Switch
UMA/Discrete Switch
Hot KeysFunction Keys:
Fn+F1 Suspend switch
Fn+F2 WLAN switch
Fn+F2 Bluetooth switch
Fn+F3 Access to the E-mail
Fn+F4 Access to the Internet
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/CRT switch display
Fn+F9 TouchPad Lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Space Power 4Gear +
Fn+C Splendid
Fn+T Power4Phone
Fn+V Camera capture
Fn+A Light Sensor
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←?Skip to Previous Track
Fn+ →?Skip to Next Track
AudioBuilt-in Azalia compliant audio chip, with 3D effect & full duplex
Built-in speaker and microphone

Keyboard26.3mm size Keyboard

Battery Pack & Life3 cells: 2400 mAh,
6 cells: 4800 mAh,
AC AdapterOutput: 19 V DC, 3.42 A, 65W
Input: 100-240V V AC, 50/60 Hz universal
Dimension & Weight27.6 x 19.5 x 3.71 cm (W x D x H)
1.4 kg (with 3 cell battery)

SecurityBIOS Booting / HDD User Password Protection and security lock
Kensington lock hole

Supplied AccessoriesOptical Mouse Carrying bag

Multimedia SoftwareASUSDVD 6-in-1
Virus & Tool SoftwareNorton™ Internet Security 2008 (optional)
Adobe Acrobat Reader 8.0
Power2Go
ASUS UtilityAsus Win flash for BIOS and Driver live Update
ASUS SmartLogon (optional)
ASUS Net 4 switch
Asus Power4Gear eXtreme
Asus Live Update
Asus Multi-Frame
Asus NB Probe +
ASUS Life Frame 3
Asus Wireless Console
ASUS Splendid
Asus Screen Saver
ASUS Zoom In
Warranty & e-support2-year limited global hardware warranty
*different by country
1-year battery pack warranty
On-line problem resolution through web interface (BIOS, Driver update)
OS (Windows Vista) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting

OS CompatibilityWindows Vista/Windows XP





  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
