Fujitsu Lifebook B6230 Notebook Technical Specifications


Fujitsu Lifebook B6230 Notebook Technical Specifications

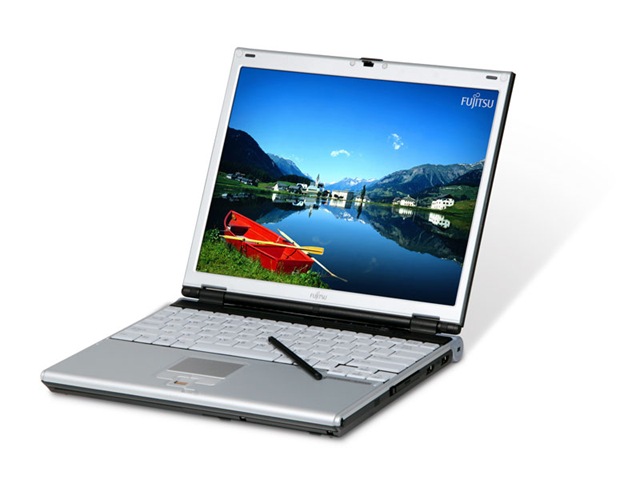

fujitsu b6230_rightangle_stylus Powered by the latest Intel® Core™ 2 Duo Processor Ultra Low Voltage U7600, the new ultra-portable LifeBook B6230 notebook is designed to handle today's most demanding business applications. Its touch-sensitive display is ideal for fast-paced, forms-intensive applications. You can quickly navigate through your applications using a stylus or your fingertip. The combination of its thin profile, lightweight form factor, long battery life, wireless LAN, and multiple levels of security make the LifeBook B6230 ideal to meet your everyday mobile computing needs.

Fujitsu LifeBook B6230 Notebook Technical Specifications:

ModelFujitsu Lifebook B6230
Software
Operating

Systems

Genuine Windows XP Tablet PC Edition 2005

Genuine Windows XP Professional

Genuine Windows Vista Business

SoftwareFujitsu Security Application Panel, LifeBook Application Security Panel, Fujitsu Driver Update Utility, Fujitsu Menu Utility (with Genuine Windows XP Tablet PC Edition and Vista Business model only), TPM Driver and application CD
Optional

Software

Depending on your system configuration, you may also receive:

Softex OmniPass for fingerprint sensor; Bluetooth Utility CD

Key Specifications
ProcessorIntel Core 2 Duo Processor Ultra Low Voltage U7600 (1.2 GHz, 2 MB L2 cache, 533 MHz FSB)
ChipsetIntel 945GM
Memory
  • Two DIMM slots; max 4 GB (2 GB x 2)
  • DDR2 533MHz, 200-pin SODIMM
Display

LCD

12.1" XGA TFT display with touch screen

Video Controller

Intel 945GM
  • Simultaneous and dual support for external monitor and internal display, multi-screen display support for graphic editing or presentations.
  • Dynamic Video Memory Technology (DVMT) responds to application requirements and efficiently allocates the proper amount of system memory (up to 224 MB) for optimal graphics and system performance
Resolution
  • Maximum internal display: 1024x768, 16M colors
  • External monitor: 1600x1200, 16M colors
  • Supports simultaneous display: 1024x768, 16M colors
Hard

Drive1

40GB, 80 GB, 120 GB; 5400 rpm; SATA; shock-mounted 32 GB Solid State Drive
DigitzerResistive (Passive)
Optical DriveN/A
Audio
  • Realtek ALC262

    with 16-bit HD audio

  • Headphone/line-out jack and mono microphone/line-in jack
CommunicationMultinational2 56K3 V.90

modem

and Gigabit Ethernet LAN (V.92 drivers available for download)

Wireless

Communication

  • Atheros Super AG Wireless LAN (802.11a/b/g); Wi-Fi, CCX and WPA certified; Dual-band diversity antenna
  • Antenna ON/OFF switch
  • Optional Bluetooth (v2.0) Personal Area Network (PAN) for file transfer and data synchronization with other Bluetooth devices
User

Interfaces

  • Integrated touchpad with scroll button
  • Intuitive touch screen
  • 82-key full-size keyboard: 18 mm key pitch and 2 mm key stroke
Ports
  • Optional
  • DC-in, LAN pass-thru, ext. VGA, 2x USB 2.0

Card Slots

  • One Type II CompactFlash (CF) card slot
  • One Type I/II; 32-bit PCMCIA CardBus architecture (with built-in Smart Card reader)4
Security

  • Integrated Trusted Platform Module (TPM), TCG 1.2 compliant, LifeBook Applications/Security panel
  • Smart Card ready4
  • Optional AuthenTec Fingerprint Sensor with TruePrint Technology; 15 cm/sec slide speed (replaces scroll button with scroll function still intact)
  • Fujitsu Security Application panel
  • Two-level hard drive password protection
  • BIOS support for Computrace and LoJack for Laptops service (tamper-proof theft protection; requires service)5
  • Security lock slot
Battery

Life6

Main battery: Lithium ion (6-cell 7.2V, 7800mAh, 56.2 WHr) Up to 4 hrs., 30 mins.
AC

Adapter

Auto-sensing dual voltage support, 100-240V AC supplying 16V DC, 3.75A
Dimensions

and Weight

10.55" x 9.02" x 1.29"; approx 3.2 lbs. with main battery
Operating

Temperature

41°F to 95°F / 5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-operating

Temperature

5°F to 140°F ( -15°C to 60°C), 8% to 85% relative humidity; non-condensing
Key

Accessories

Port Replicator

For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
Service & Regulatory Information
Compliance
  • FCC Part 15B Class B, FCC Part 15C, and FCC Part 15E; IC ICES-003 Class B and RSS-210
  • UL-cUL Listed
  • FCC Part 68; IC CS-03
  • CE Marking (Not supported when configured with the WLAN module)
Warranty7One- or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available .
  1. One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.

  2. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
  3. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
  4. Requires optional Smart Card Holder in order to access the reader. Third-party Smart Card and application required.
  5. Requires Computrace or LoJack for Laptops service.
  6. Battery life estimates reflect the results of BAPCo MobileMark2007 Productivity Workloads performed upon systems with battery life setting enabled on Windows XP operating system. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
  7. Service and warranty turnaround time may vary by country and product. The international warranty is only valid for products purchased in North, Central, and South America.

Specifications are subject to change without notice.
