Fujitsu LifeBook N7010 Notebook Technical Specifications


Fujitsu LifeBook N7010 Notebook Technical Specifications

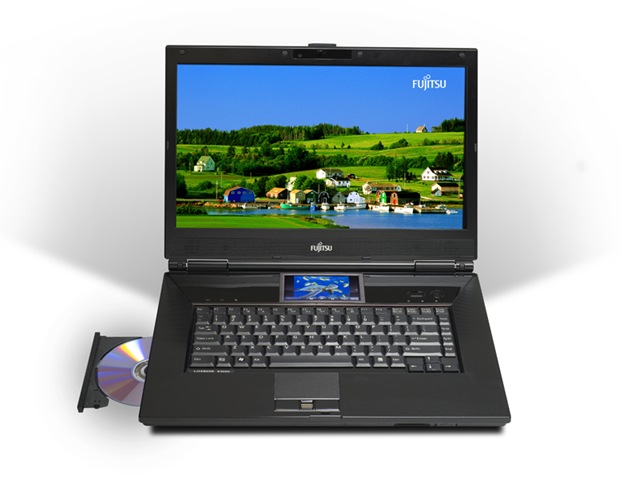

Fujitsu lifebook n7010 notebook The LifeBook N7010 notebook fuses the convenience of a notebook with the power of a desktop. With its unique high contrast 16" Crystal View display, paired with a second 4" touch screen display, the LifeBook N7010 notebook takes portability to a whole new level. You won't believe the power and features packed into this mobile computer. With Genuine Windows Vista® Home Premium, your notebook can transform into an uncompromising media center. The high-speed mobile Intel® Core™ 2 Duo Processor coupled with high speed ATI Mobility™ Radeon® HD 3470 graphics, deliver the level of performance gamers and technology enthusiasts crave. The Blu-ray™ optical drive lets you enjoy the high-definition world or save data to a high capacity Blu-ray Disc.

- ATI Mobility™ Radeon® HD 3470 with a maximum 256 MB GDDR3
- 16" Crystal View Wide XGA TFT, Built-in 4" Wide QVGA TFT, passive touch panel
- Integrated 1.3 mega-pixel, Blu-ray™ ROM Drive
- Integrated Intel Wi-Fi Link T5100 wireless, Bluetooth

Fujitsu LifeBook N7010 Notebook  Technical Specifications

ModelN7010
Software
Operating SystemsGenuine Windows Vista Home Premium with Microsoft Works and Microsoft Office Home and Student 2007 60-Day Trial (Service Pack 1 and 64 bit OS)
SoftwareAdobe Acrobat Reader, ArcSoft WebCam Companion, Roxio Creator, OmniPass Fingerprint Recognition Utility (on models with optional Fingerprint Sensor), Symantec Norton Internet Security 20081. CyberLink MakeDisc, CyberLink PowerDirector, CyberLink PowerDVD, Microsoft Office Ready PC and Microsoft Office Home and Student 2007 60-Day Trial with Microsoft Works 9.0.
Optional SoftwareDepending upon your system’s configuration, you may also receive Bluetooth Utility software CD, Softex OmniPass finger print Authentication and password management software, Microsoft Works with Microsoft Office Home and Student 2007 60-Day Trial, CyberLink MakeDisc™ software CD (with Genuine Windows Vista Home Premium) Cyberlink PowerDirector, Blu-ray Disc software
Key Specifications
Listed specifications are for the current model only and NOT for earlier models or revisions to this product.
ProcessorIntel Centrino 2 processor technology offering Intel Core™ 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz FSB)
ChipsetIntel PM45+ICH9m
Memory2Two DIMM slots; max. 4 GB (2 GB + 2 GB); DDR3 1066 MHz, dual-channel
DisplayLCDBuilt-in 16" Crystal View Wide XGA TFT active matrix (high contrast: 600:1 contrast ratio; 220 nits brightness)
Built-in 4" Wide QVGA TFT, passive touch panel (480 x 272 pixel resolution, 220 nits brightness)
Video ControllerATI Mobility™ Radeon HD 3470 with a maximum 256 MB GDDR3 memory dedicated VRAM (up to 2 GB total available graphics memory using HyperMemory™ technology2)
ResolutionMain Internal: WXGA, 1,366 x 768 pixel resolution, 16M colors max.
Second Internal: WQVGA, 480 x 272 pixel resolution, 16M colors max.
External: 1,600 x 1,200 pixel resolution, 16M colors.
Simultaneous: 1,024 x 768 pixel resolution, 16M colors max.
WebcamIntegrated 1.3 mega-pixel
Hard Drive3320 GB capacity, Serial-ATA, 5400 rpm, protected by Fujitsu Shock Sensor technology
Optical DriveBlu-ray™ ROM Drive:
Read: 24x CD-ROM, 24x CD-R, 16x CD-RW, 8x DVD-ROM, 8x DVD-R, 4x DVD-R DL, 4x DVD-RW, 8x DVD+R, 4x DVD+R DL, 4x DVD+RW,
5x DVD-RAM, 2x BD-ROM, 2x BD-R, 2x BD-R DL, 2x BD-RE, 2x BD-RE DL.
Write: 16x CD-R, 10x CD-RW, 8x DVD-R, 4x DVD-R DL, 4x DVD-RW, 8x DVD+R, 4x DVD+R DL, 4x DVD+RW, 5x DVD-RAM
AudioIntel ICH9 series and ALC269 (HD audio)
Realtek High Definition Audio and ATI HDMI Audio (HDMI port)
Stereo headphone jack
Stereo microphone jack
Two built-in stereo box speakers (1.0 W/channel)
Built-in microphone (on models with web cam)
CommunicationsIntegrated Broadcom 10 Base-T/100 Base-TX/1000 Base-T Gigabit Ethernet LAN
Wireless CommunicationsIntegrated Intel Wireless Wi-Fi Link 5100 (150 Mbps Tx/300 Mbps Rx, 802.11 a/b/g+n),
Integrated Bluetooth wireless v2.1
User InterfacesGesture-enabled touchpad, with two buttons and scroll tab. Fingerprint recognition sensor on select configurations. 87-key full-size spill resistant keyboard,19 mm key pitch and 3 mm key stroke
PortsOne 15-pin D-SUB connector for VGA external monitor or LCD projector
Four connectors for USB 2.0 (Universal Serial Bus) input/output devices
One HDMI port
One 4-pin IEEE 1394 jack
One stereo microphone/line in jack
One stereo headphone/line out jack
One modular LAN (RJ-45) connector (note that this system does not support a modem)
One E-SATA port
Card SlotsExpressCard slot for one ExpressCard (supporting either 34mm or 54mm ExpressCards Combination Memory Stick/Secure Digital (MS/MS Pro/SD) Card slot
Dust FilterRemovable for easy cleaning
SecuritySecurity lock slot
Integrated Biometric fingerprint sensor on select models
Battery4Main 8-cell Lithium ion battery, 14.4V, 5200 mAh; up to 2 hours and 30 minutes
AC AdapterAutosensing 100-240V AC, 100W, supplying 19V DC, 5.27A
Dimensions/Weight15.16"(w) x 10.89" (d) x 1.45" (h min) / 1.94" (h max.) / 2.22" (h max. with rubber feet); Weight: 7.67 pounds
Operating Temperature41°F to 95°F / 5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-Operating Temperature5°F to 140°F / -15°C to 60°C; 8% to 85% relative humidity, non-condensing
Key AccessoriesFor a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU.
Additional main battery, Additional AC adapter, Carrying Cases, Remote Control, External TV Tuner
Compliance and Service Information
ComplianceFCC Part 15B Class B and FCC Part 15C and FCC Part 15E; IC ICES-003 Class B and RSS-210
UL-cUL Listed
FCC Part 68; IC CS-03
CE Marking (Not supported when configured with the LAN module)
ExpressCard ID EC100303
Warranty5One- or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available.


  1. Norton Internet Security 2008. The 90-day trial version is activated upon user’s acceptance of software license.
  2. 2 GB MB HyperMemory™ is a total of 256 MB dedicated video and 1792 MB shared system memory.
  3. One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
  4. Battery life estimates reflect the results of BAPCo MobileMark 2007 Productivity Workloads performed upon systems with battery life setting enabled. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
  5. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.
Specifications are subject to change without notice.
