Fujitsu LifeBook P1620 Notebook Technical Specifications


Fujitsu LifeBook P1620 Notebook Technical Specifications

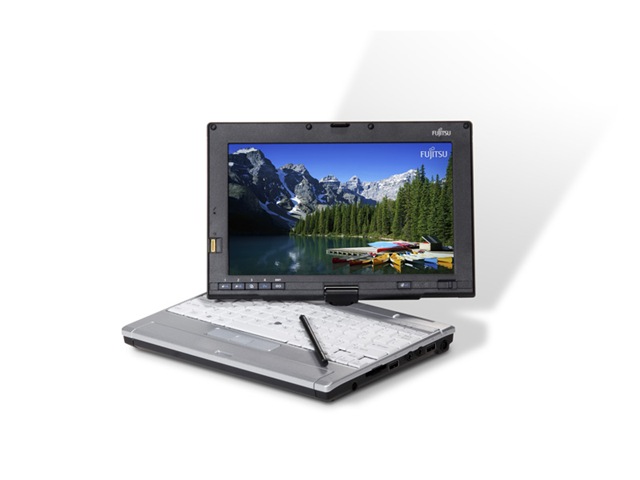

Fujitsu LifeBook P1620 Notebook With its feather-light weight, innovative bi-directional hinge, and versatile touch screen display, the LifeBook® P1620 notebook is one of the most compelling mobile computing products on the market today. This ultra-portable tablet computer offers the power and convenience of a notebook with the unique versatility to handle special-purpose applications that are best suited for a slate tablet.

- Improved performance with latest Intel® Core™2 Duo Processor ULV U7600
- Ultra-portable at approx. 1kg (w 3-cell battery)
- Bi-directional hinge fitted screen for greater convenience
- Superior security features for enhanced data and hardware protection
- Health and environment friendliness with RoHS compliance

Fujitsu LifeBook P1620 Notebook Technical Specifications:

ModelP1620
Software
Operating SystemsGenuine Windows Vista Business Edition,

Genuine Windows XP Tablet PC Edition 2005, or

Genuine Windows XP Professional

SoftwareEverNote Plus, DialKeys, Fujitsu ShockSensor Utility, Fujitsu Portshutter, Fujitsu HotKey Utility, Norton Internet Security 2007 (90-Day Trial1), LifeBook Security/Application Panel, Fujitsu Driver Update Utility, Intellisonic Audio Utility, TPM Utility CD, OmniPass Fingerprint Authentication Utility
Optional SoftwareDepending on your system configuration, you may also receive:

Genuine Windows Vista Business :

OneNote 2007, Bluetooth Utility

Genuine Windows XP Tablet PC Edition 2005:

OneNote 2007, Bluetooth Utility

Genuine Windows XP Professional:

ritePen, Bluetooth Utility

Note: Optional software may require an external optical drive.

Key Specifications
ProcessorIntel Core%26trade; 2 Duo Processor Ultra Low Voltage U7600 (1.20 GHz, 2 MB L2 cache, 533 MHz FSB)
ChipsetIntel 945GMS chipset
System MemoryOne Micro-DIMM slot; min 512 MB; max 2 GB DDR2 SDRAM
DigitzerResistive (Passive)
DisplayLCD8.9" WXGA touch screen display
Video ControllerIntel Graphics Media Accelerator 950; Dynamic Video Memory Technology (DVMT) responds to application requirements and efficiently allocates the proper amount of system memory (up to 128 MB) for optimal graphics and system performance.
Resolution
  • Internal display (max): 1280 x 768, 16M colors
  • External monitor display: 1600 x 1200, 16M colors
  • Simultaneous display resolution: 1280 x 1024, 16M colors
Hard Drive240 GB, 60 GB, 80, or 100 GB (4200 rpm), P-ATA 100; Shock-mounted Fujitsu Shock Sensor hard drive protection system; or 32 GB Flash-Based Solid State Drive
Audio
  • Realtek ALC262
  • Stereo and headphone/line-out jacks
  • Microphone/line-in jack
  • Internal digital microphone
CommunicationMultinational3 56K4 V.90 modem; 10/100/1000 Gigabit Ethernet LAN
Wireless CommunicationChoice of Intel Wireless WiFi Link 4965AG (Tri-mode 802.11a/b/g) or Atheros Super AG Wireless LAN (802.11a/b/g), Optional Bluetooth 2.0
User InterfacesStickPoint by Alps, 82-key keyboard with 16 mm key pitch; 2 mm key stroke
PortsTwo USB 2.0

External monitor

Modem (RJ-11)

Ethernet (RJ-45)

Headphone/line-out

Microphone/line-in

Docking connector

Card Slots
  • One Type I/II PCMCIA slot
  • One Secure Digital (SD) Card slot
Security Platform
  • Integrated fingerprint sensor
  • Embedded Trusted Platform Module (TPM) 1.2
  • Two-level hard drive and BIOS password protection
  • Computrace BIOS Persistence Module5
  • Security lock slot
Battery LifeStandard Lithium ion (3-cell, 10.8V, 2600 mAh, 28 WHr) Up to 3 hrs., 15 mins.

High-Capacity Lithium ion (6-cell, 10.8V, 5200 mAh, 56 WHr) Up to 6 hrs., 45 mins.

AC AdapterAutosensing dual voltage support, 100-240V AC supplying 16V DC, 3.75A
Dimensions and Weight9.13" x 6.57" x 1.36" Approximately 2.2 lbs. with a 3-cell battery

9.13" x 7.32" x 1.36" Approximately 2.5 lbs. with a 6-cell battery

Operating Temperature41°F to 95°F / 5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-operating Temperature5°F to 140°F / -15°C to 60°C, 8% to 85% relative humidity; non-condensing
Key AccessoriesPort replicator with two USB 2.0, external monitor, Ethernet (RJ-45), and DC-in,

External USB Dual-Layer DVD Writer,

External USB DVD/CD-RW combo drive

For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
Service & Regulatory Information
Compliance
  • FCC Part 15B Class B and FCC Part 15C, FCC Part 15E;

    IC ICES-003 Class B and RSS-210

  • UL-cUL Listed
  • FCC Part 68; IC CS-03
Warranty6One- or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available.

  1. Preinstalled with a 90-day trial version of Symantec Norton Internet Security 2007. The 90-day trial version is activated upon user's acceptance of software license agreement. After 90 days, the user must purchase a subscription from Symantec to download latest virus definitions.
  2. one gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
  3. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
  4. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
  5. Requires Computrace or LoJack for Laptops service.
  6. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.
Specifications are subject to change without notice.
