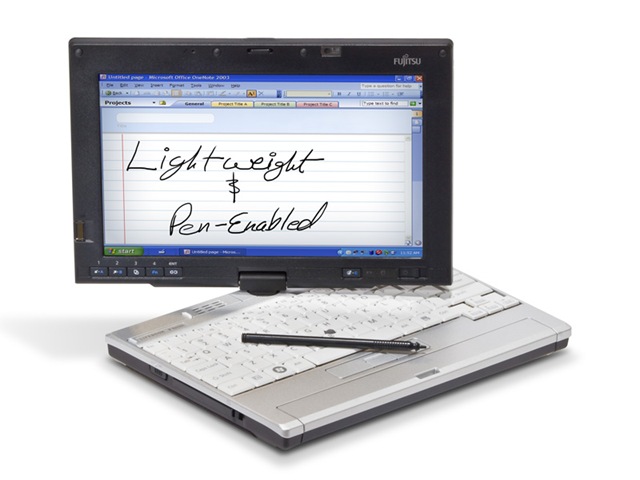

Fujitsu Lifebook P1630 Tablet PC Technical Specifications

---

With its feather-light weight, innovative bi-directional hinge, and versatile touch screen display, the LifeBook P1630 notebook is one of the most compelling mobile computing products on the market today. This ultra-portable tablet computer offers dual-core power and the convenience of a notebook with the unique versatility to handle special-purpose applications that are best suited for a slate tablet.

- Improved performance with latest Intel Centrino 2 processor Technology
- Converged communication with 1.3 Mega Pixel camera
- 8.9" Wide XGA Impressive touch screen quality with Anti-glare screen
- Ultra-portable at around 1 kg (with 3-cell battery)
- Versatile with convertible form factor and pen input capability
- Superior security features for enhanced data and hardware protection
- Health and Environment friendliness with RoHS compliance

Fujitsu Lifebook P1630 Tablet PC Technical Specifications:

Model	P1630
Software
Operating Systems	Genuine Windows Vista Business, Downgrade Service (Note: Downgrade service to either Genuine Windows XP Tablet PC Edition 2005 or Genuine Windows XP Professional. Systems include both Genuine Windows Vista Business and Genuine Windows XP recovery disc and utility. Requires intent to purchase an annual volume of 25 units). Genuine Windows Vista Business, Bonus Media (Note: Systems with Genuine Windows Vista Business preinstalled will include Genuine Windows Vista Business and Genuine Windows XP recovery disc and utility).
Software	Adobe Acrobat Reader, Norton Internet Security 20081, OmniPass Fingerprint application, Fujitsu Driver Update utility, Evernote Plus, Portshutter Data Leak Prevention Software, Arcsoft Webcam Companion
Optional Software	Depending on your system configuration, you may also receive: Genuine Windows Vista Business : OneNote 2007, Bluetooth Utility Genuine Windows XP Tablet PC Edition 2005: OneNote 2007, Bluetooth Utility Genuine Windows XP Professional: ritePen, Bluetooth Utility Note: Optional software may require an external optical drive.
Key Specifications
Processor	Intel Core™ 2 Duo Processor Ultra-Low Voltage SU9300 (1.20 GHz, 3 MB L2 cache, 800 MHz FSB)
Chipset	Intel GS45 Express chipset
System Memory	DDR2-667 MHz SDRAM dual-channel memory module. One DIMM slot; upgradeable to 2 GB of total memory.
Digitzer	Resistive (Passive)
Display	LCD	8.9" Wide XGA touch screen display
	Video Controller	Intel Graphics Media Accelerator 4500HD video graphics. Up to 384 MB shared video memory using Dynamic Video Memory Technology (DVMT)
	Resolution	Internal display (max.): 1,280 x 768 pixel resolution, 16M colors External monitor display: 1,280 x 1,024 pixel resolution, 16M colors Simultaneous display resolution: 1,280 x 800 pixel resolution, 16M colors
Hard Drive2	80 or 120 GB (5,400 rpm), S-ATA 150; Shock-mounted; further protected by Fujitsu Shock Sensor Utility hard drive protection system; or 64 GB Flash-Based Solid State Drive
Webcam	Integrated Webcam (1.3 Mega-Pixels)
Audio	Realtek ALC269 with high Definition (HD) audio Stereo and headphone/line-out jacks Stereo Microphone/line-in jack Internal digital microphone
Communication	Multinational3 56K4 V.92 modem; 10/100/1000 Gigabit Ethernet LAN
Wireless Communication	Choice of Intel Wireless Wi-Fi Link 5300AGN (802.11a/b/g/draft-n), or, Atheros XSPAN, Optional Bluetooth 2.1 for wireless personal area network communication
User Interfaces	StickPoint by Alps, 82-key keyboard with 16 mm key pitch; 2 mm key stroke
Ports	One 15-pin D-SUB connector for VGA external monitor (see Display specifications) Two USB 2.0 (Universal Serial Bus) connectors for input/output devices One DC In connector One LAN (RJ-45) connector One modem (RJ-11) connector Docking port (80-pin, to dock with port replicator) One stereo headphone jack One stereo microphone/line-in jack
Card Slots	One Type I/II PCMCIA slot One Secure Digital (SD) Card slot
Security Platform	Integrated Fingerprint Sensor with pre-boot authentication Smart Card ready (via PCMCIA card slot; third-party software and Smart Card holder required) Embedded Trusted Platform Module (TPM) 1.2 Two-level hard drive and BIOS password protection Computrace BIOS Persistence Module5 Security lock slot
Battery6	Standard Lithium ion (3-cell, 10.8V, 2600 mAh, 28 WHr); up to 3 hours High-Capacity Lithium ion (6-cell, 10.8V, 5200 mAh, 56 WHr); up to 6 hours and 15 minutes
AC Adapter	Autosensing dual voltage support, 100-240V AC supplying 16V DC 3.75A
Dimensions and Weight	9.13" x 6.57" x 1.36" Approximately 2.2 lbs. with a 3-cell battery 9.13" x 7.32" x 1.36" Approximately 2.5 lbs. with a 6-cell battery
Operating Temperature	41°F to 95°F / 5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-operating Temperature	5°F to 140°F / -15°C to 60°C, 8% to 85% relative humidity; non-condensing
Key Accessories	Port replicator with two USB 2.0, external monitor, Ethernet (RJ-45), and DC-in, External USB Dual-Layer DVD Writer, External USB DVD/CD-RW combo drive
	For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
Service & Regulatory Information
Compliance	FCC Part 15B Class B and FCC Part 15C, FCC Part 15E; IC ICES-003 Class B and RSS-210 UL-cUL Listed FCC Part 68; IC CS-03
Warranty7	One- or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available.

1. Preinstalled with a 90-day trial version of Symantec Norton Internet Security 2007. The 90-day trial version is activated upon user's acceptance of software license agreement. After 90 days, the user must purchase a subscription from Symantec to download latest virus definitions.
2. one gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
3. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
4. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
5. Requires Computrace or LoJack for Laptops service.
6. Battery life estimates reflect the results of BAPCo MobileMark2007 Productivity Workloads performed upon systems with battery life setting enabled. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
7. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.

Specifications are subject to change without notice.
