Fujitsu Lifebook P8020 Notebook Technical Specifications

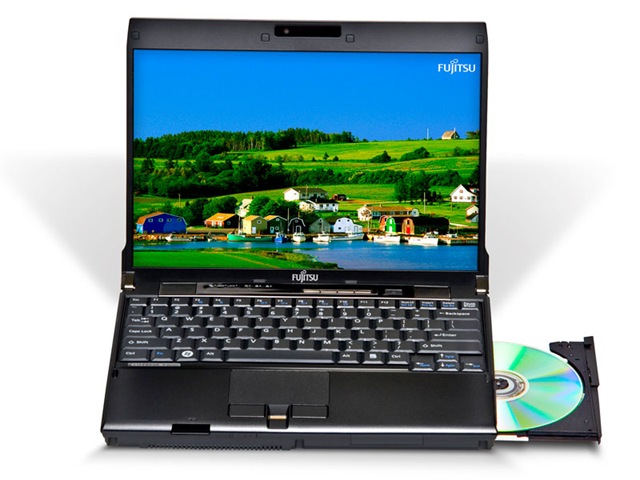

Fujitsu Lifebook P8020 Notebook

Fujitsu Lifebook P8020 Notebook The LifeBook P8020 offers the perfect combination of power, performance and elegance in an ultraportable notebook. Despite it's size the LifeBook P8020 offers features that are standard in larger notebooks, such as an optical drive, built-in webcam, and integrated Fingerprint Sensor for enhanced security. The LifeBook P8020 is sure to enhance your computing experience wherever you go. Traveling first class is no longer just reserved for flying.

• Intel Core 2 Duo Processor Ultra Low Voltage SU9400
• 12.1" Crystal View WXGA (1280×800) LED backlit display
• Integrated Intel Graphics Media Accelerator 4500MHD
• Intel Wireless Wi-Fi Link 5300AGN (3 x 3) with Bluetooth wireless
• Dual-Layer Multi-Format DVD Writer
• Built-in Webcam for Instant Messaging, Embedded TPM and Fingerprint Sensor

Fujitsu Lifebook P8020 Notebook Technical Specifications:

ModelP8020
Software
Operating SystemsGenuine Windows Vista Business, Bonus Media with Microsoft Office Ready PC
and Microsoft Office Professional 2007 60-Day Trial (ENERGY STAR Compliant)1
Genuine Windows Vista Business, Downgrade Service with
Microsoft Office Ready PC and Microsoft Office Professional 2007 60-Day Trial
(ENERGY STAR Compliant)2
SoftwareAdobe Acrobat Reader, Norton Internet Security3 (90-day free trial), Google Desktop, Google Tool Bar, Google Picasa, CyberLink PowerDVD, OmniPass Fingerprint application, Fujitsu Driver Update utility, Microsoft Office Ready with Office Assistant, Roxio Creator, Fujitsu shock sensor utility
Optional SoftwareArcSoft Webcam Companion, Bluetooth diver and application disc
Key Specifications
ProcessorIntel Core 2 Duo™ Processor SU9400 Ultra Low Voltage Processor (1.4 Ghz, 3 MB L2 cache, 800 fsb)
ChipsetMobile Intel GS45 chipset
System MemoryTwo DIMM slot; max. 4 GB DDR3 800 Mhz SDRAM memory
DisplayLCD12.1" Crystal View WXGA LED backlit display
ResolutionMaximum internal display: 1280 x 800, 16M colors
External monitor display: (max.): 1920 x 1200, 16M colors
Simultaneous display (max.) 1280 x 768 16M colors
Video ControllerIntel Graphics Media Accelerator 4500MHD video graphics, with the following amounts of shared video memory using Dynamic Video Memory Technology (DVMT), as determined by the amount of system memory:
Operating SystemSystem MemoryMax. Graphics Memory
Genuine Windows Vista1 GB271 MB
2 GB783 MB
3 GB1,295 MB
4 GB1,295 MB
Genuine Windows XP1 GB512 MB
2 GB1,024 MB
3 GB1,024 MB
4 GB1,024 MB
Hard Drive5120 GB, 160 GB, 250 GB, 320 GB SATA 150, 5400 rpm hard drive; 64 GB solid state drive, shock-mounted, and protected by smart shock sensor technology
Optional WebcamIntegrated 1.3 mega-pixel webcam
Optical DriveDual-Layer Multi-Format DVD Writer
AudioRealtek ALC269
CommunicationsOptional Multinational6 56K7 V.92 Modem 10/100/1000 Gigabit Ethernet LAN
Wireless CommunicationsIntel Wireless Wi-Fi Link 5300 (Quad-mode 802.11 a/b/g/draft n) or
Atheros xspaN (b/g/draft-n)
Optional Bluetooth v2.1 for wireless personal area network communication
User InterfacesSpill resistant 82-key keyboard with 18 mm key pitch and 2 mm key stroke
Integrated touchpad pointing device with scroll button
Notebook PortsOne 15-pin D-SUB connector for VGA external monitor (see Display specifications in your display manual), Three USB 2.0 (Universal Serial Bus) connectors for input/output devices, One DC In connector, One LAN (RJ-45) connector, One IEEE 1394 connector, One modem (RJ-11) connector (optional), Port replicator connector (50-pin, to dock with port replicator), One stereo headphone jack, One stereo microphone/line-in jack
Optional Port Replicator PortsOne 15-pin D-SUB connector for VGA external monitor, Four USB 2.0 connectors for input/output devices, One LAN (RJ-45) connector, One headphone/line-out jack, One DC-in connector, One DVI-D connector
Card SlotsPC Card slot for one Type I or Type II card
Secure Digital (SD) Card slot
SecurityTrusted Platform Module (TPM), TCG 1.1b-compliant
AuthenTec Fingerprint Sensor with TruePoint Technology; 15cm/sec
slide speed (replaces scroll button)
Security lock slot
Computrace BIOS Persistent Module
Battery Life4High capacity 6-cell Lithium ion battery, rechargeable, 7.2V, 8700 mAh; Battery life up to 7 hrs. 45 mins.
AC AdapterAuto-sensing dual voltage support, 100-240V AC supplying 16V DC, 3.75A
Dimensions/Weight10.79" x 8.27" x 1.12/1.47"; Approximately 2.9 lbs. with 6-cell battery and optical drive
Operating Temperature41° F to 95° F/5° F to 35° C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-Operating Temperature5° F to 140° F/5° F to 35° C; 8% to 85% relative humidity non-condensing
Key AccessoriesPort Replicator, Battery Charger, Additional Battery, Additional AC Adapter
For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
Compliance and Service Information
ComplianceFCC Part 15B Class B; FCC Part 15C; IC ICES-003 Class B and RSS-210;
FCC Part 15 E
UL-cUL Listed
FCC Part 68; IC CS-03
Warranty8One- or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available.

  1. Systems with Genuine Windows Vista Business preinstalled will include Genuine Windows Vista Business and Windows XP recovery disc and utility.
  2. Downgrade service to Genuine Windows XP Professional requires installation of drivers and applications. Systems include both Genuine Windows Vista Business and Genuine Windows XP recovery disc and utility. This requires intent to purchase an annual volume of 25 units. Not available through Distribution.
  3. Preinstalled with a free 90-day trial version of Symantec Norton Internet Security 2008. The 90-day trial version is activated upon user’s acceptance of software license agreement. After 90 days, the user must purchase a subscription from Symantec to download latest virus definitions.
  4. Battery life estimates reflect the results of BAPCo MobileMark2007 Productivity Workloads performed upon systems with maximum battery life settings enabled, utilizing the optional SSD drive. Actual battery life will vary based on hardware options installed, screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
  5. One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
  6. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.http://www.computers.us.fujitsu.com/modems.
  7. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
  8. Service and warranty turnaround time may vary by country and product. International warranty valid only for products purchased in North, Central, and South America
Specifications are subject to change without notice.
