Fujitsu LifeBook S6520 Notebook Technical Specifications


Fujitsu LifeBook S6520 Notebook Technical Specifications

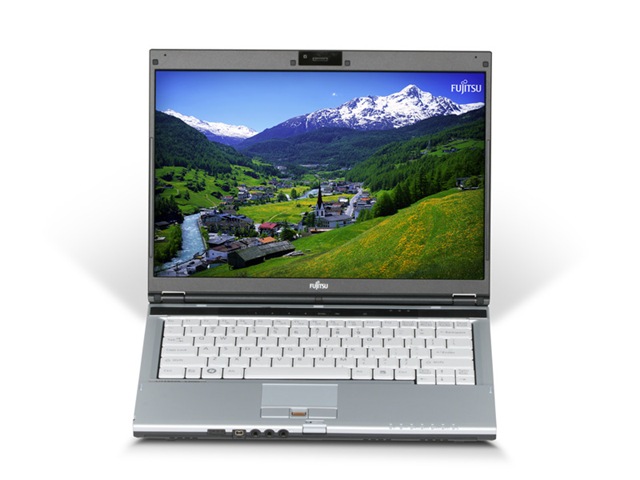

Fujitsu LifeBook S6520 Notebook The LifeBook S6520 is renowned for its innovative SlimEdge Design that gives you a screen so wide, it’s almost borderless. What’s more, the S6520 is packed with more power than you can handle thanks to the latest Intel® Centrino® 2 processor technology. You will also appreciate the SuperFine LCD Display and exceptional expandability with the hot swappable bay.

- Intel Core™ 2 Duo Processor, Intel GM45 Chipset
- 14.1" Crystal View Wide XGA (1280 x 800)
- Intel Graphics Media Accelerator 4500 MHD video graphics
- Integrated 1.3 mega-pixel webcam
- Optional Intel WiFi Link 5300 (802.11a/b/g/draft-n)
- Genuine Windows Vista Business

Fujitsu LifeBook S6520 Notebook Detailed Technical Specifications:

Specifications
PlatformIntel® Centrino® 2 processor technology
- Intel® Core™2 Duo Processor T9400(2.53GHz, 6MB L2 cache, 1066MHz)
- Intel® Core™2 Duo Processor P8600(2.4GHz, 3MB L2 cache, 1066MHz))
- Intel® GM45 Express Chipset
- Intel® WiFi Link 5300AGN(3X3) network connection
Operating SystemGenuine Windows Vista® Business
(or Genuine Windows Vista® Home Premium)
(or Genuine Windows Vista® Home Basic)
Display 14.1-inch SuperFine WXGA back-light LED 18 300nits, 1280 x 800 pixels
Modular Bay Device Dual Layer DVD Super Multi Writer 9
Memory2GB DDR3 1066MHz/ 1 GB DDR3 1066MHz
DDR3 1066MHz Max. Memory Supported 14 - 4GB DDR3 1066MHz, Dual-Channel
Hard Disk320GB/250GB/160GB
BatteryUp to 4.7 hrs1 (6-cell Li-ion 5800mAh)
WeightApprox. 1.7kg (w/ weight saver option)
Detailed Specifications
Hard Disk DriveSATA-150 5400rpm, S.M.A.R.T support, Two Partitions - 50/50 13, protected by Fujitsu 3D Shock Sensor 15
GraphicsIntegrated Intel® Graphics Media Accelerator 4500MHD with Intel® Clear Video Technology11 and DVMT6 5.0 delivers low-power, high-performance 2D/3D graphics with Shader Model 4.0, video and display capabilities at a max. shared memory 5 of 825MB/ 313MB
High Definition (HD) AudioRealTek ALC262 HD audio codec with dual built-in stereo speakers
HD Audio-in: External Mic-in, Dual Built-in Stereo Microphones
HD Audio-out: Headphone-out
Communication1.3 Mega Pixel camera, Bluetooth® v2.1+EDR, 56K V.92 2 Global Modem MDC1.5, Infrared IrDA 1.1 4Mbps Global Modern MDC1.5, Infrared IrDA 1.1 4 Mbps 3, 1000/100/10Mbps 4 Gigabit Ethernet PCI Express® x 1 and Intel® WiFi Link 5300AGN(3x3) network connection with three antenna. Separate ON/OFF switch for wireless network connection.
User InterfaceSpill-resistant Keyboard 12: 84-key, 19mm key pitch, 2.7mm key stroke
Intelligent Touch Pad with configurable vertical and horizontal scroll functions
Fingerprint Sensor with vertical scroll functions
Card SlotPC Card Type II, Smartcard7 support, Secured Digital/ SDHC/ Memory Stick®/ Memory Stick® PRO/ xD
Connector InterfaceUSB 2.0 x 3, VGA (external display), RJ45 (LAN), RJ11 (modem), IEEE1394, S-Video out, HDA-in, HDA-out, Power Adapter DC-in, Port Replicator Interface
Quick Launch ButtonFour Programmable Application Launch Buttons (Support, Mail, Internet and ECO button)
Media Playback PanelFour Functions: Stop/ Eject, Play/ Pause, Next, Previous
Security8BIOS Lock, Hard Disk Lock, Anti-theft Lock Slot, Smartcard7 support, Fingerprint Sensor, Trusted Platform Module option
Dimensions316mm (W) x 235mm (D) x 24/34mm (H)
Bundled Accessories
AC AdapterInput AC 100~240V, Output DC 19V 80W
Bundled SoftwareSoftex Omnipass, CyberLink PowerDVD™, CyberLink PowerProducer™, Roxio Easy Media Creator, Adobe Acrobat Reader, Fujitsu UpdateNavi16, Fujitsu 3D Shock Sensor Utility, Fujitsu Power Saving Utility, Fujitsu Hardware Diagnostic Tool, Fujitsu Display Manager, Sun Microsystems Java Runtime, Camera Capture Application, Microsoft Office Professional 2007 60-day Convertible Trial17
Software on CD1 year Full Licensed Norman Virus Control with Sandbox Technology and Norman Personal Firewall, Acronis True Image
Optional Accessories
Port ReplicatorConnector Interface:
USB 2.0 x 4, DVI-D, VGA (external display), RJ45 (LAN), PS/2 (keyboard/mouse), Serial, Parallel, Power Adapter DC-in
Modular Bay OptionsReplaceable with
- Bay Battery, 6-cell Li-Ion 2500mAh, up to 7hrs1 battery life (Standard + Bay Batteries)
- Dual Layer DVD Super Multi Writer9
- DVD/CD-RW Combo Drive
- Weight Saver
Floppy Disk DriveExternal USB 1.44MB FDD
MouseOptical USB Black Mouse (Retractable)
