Fujitsu LifeBook T4020/T4020D Tablet PC Technical Specifications


Fujitsu LifeBook T4020/T4020D Tablet PC Technical Specifications

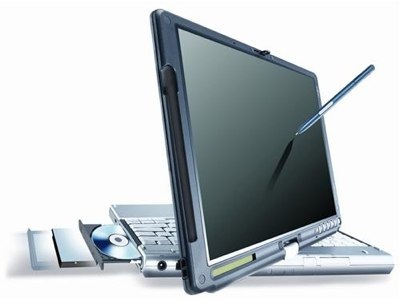

Fujitsu Lifebook T4020 Tablet Pc The LifeBook T4020 Tablet PC provides the full power, functionality, and familiarity of a notebook yet offers versatile digital inking capabilities.

The choice of a wide viewing-angle display or one with high resolution means you get a bright, clear image while the integrated wireless LAN technology allows you to stay connected when running from meeting to meeting and back to your desk. Take advantage of the flexible modular bay to install a second battery for the longest of workdays. Or install a modular optical drive to watch movies on DVD, listen to music CDs, and store data. The optical drive features the T4000-exclusive patent pending BayLock feature which protects the optical drive when the system is in tablet mode.

Tips: difference at Lifebook T4020 and T4020D: T4020 is Intel PRO/Wireless Network Connection (Tri-mode 802.11a/b/g); but T4020D is Atheros Super AG Wireless LAN (802.11a/b/g).

Fujitsu LifeBook T4020/T4020D Tablet PC Technical Specifications:

T4020/T4020D
Software
Operating SystemMicrosoft® Windows® XP Tablet PC Edition 2005
Bundled SoftwareMicrosoft® Office OneNote® 2003, Adobe® Reader®, Microsoft® Reader, Fujitsu Display Controls, Fujitsu Hot Key Utility, Fujitsu Security Application Panel, Fujitsu Driver Update Utility, Softex OmniPass Note 1: Microsoft® Office OneNote® 2003 requires product activation
Software on CDDepending on your system configuration, you may also receive the following application: Microsoft® Office Small Business Edition 2003, Bluetooth Utility, Sonic RecordNow!™, InterVideo WinDVD™, InterVideo WinDVD Creator™ Plus
Key Specifications
Processors
  • Intel® Pentium® M Processor 740 (1.73 GHz, 2 MB L2 cache, 533 MHz FSB)
  • Intel® Pentium® M Processor 760 (2 GHz, 2 MB L2 cache, 533 MHz FSB)
Displays
  • 12.1” XGA TFT indoor (Transmissive) display with greater than 160° viewing angles
  • 12.1” XGA TFT indoor/outdoor (Transmissive) display with greater than 160° viewing angles
DigitizerElectromagnetic (Active)
ChipsetIntel® 915GM
System MemoryMinimum of 256 MB; two DIMM slots; maximum memory to 2 GB (1 GB x 2)
Memory TypeDDR2 533 MHz; 200-pin SO DIMM
Video ControllerIntel® Graphics Media Accelerator 900. Maximum internal display resolution of 1024 x 768, 16M colors
Video Memory Dynamic Video Memory Technology (DVMT) responds to application requirements and efficiently allocates the proper amount of system memory (up to 128 MB) for optimal graphics and system performance
Display Resolution Internal display (max): 1024 x 768, 16M colors External monitor display (max): 1600x1200, 16M colors Simultaneously max resolution 1024x768
AudioSigmaTel® STAC9753A AC-97 rev. 2.3 compliant; 20-bit audio built-in dual mic array with IntelliSonic™ software that provides background noise/echo cancellation and suppression; stereo headphone and mono microphone jacks
Hard drive180 GB, 60 GB, or 40 GB Serial-ATA 150; 5400 rpm shock-mounted
Modular Bay Options (Optional)Choice of Weight-saver, DVD-ROM, DVD/CD-RW combo, Dual-Layer Multi-Format DVD Writer, or 2nd Bay Battery
CommunicationMultinational2 56K3 V.90 modem (software upgradeable to V.92 via driver download); 10/100/1000 Base-T/TX Ethernet
Model T4020 Wireless Communications Integrated Intel® PRO/Wireless Network Connection (Tri-mode 802.11a/b/g); Wi-Fi® Certified; diversity antenna
Model T4020D Wireless CommunicationsAtheros Super AG® Wireless LAN (802.11a/b/g) Wi-Fi® Certified; diversity antenna
Security PlatformEmbedded Trusted Platform Module (TPM); dedicated Smart Card slot; Fujitsu Security Application Panel; optional Integrated Biometric fingerprint swipe sensor; Kensington™ lock slot
User Interface82-key keyboard with 19 mm key pitch and 2.7 mm key stroke; Touch pad with scroll (if Fingerprint swipe sensor option is selected, it will replace the scroll button)
PortsTwo USB 2.0, Infrared port (IrDA 1.1-compatible, 4 Mbps), external monitor, modem (RJ-11), Ethernet (RJ-45) IEEE 1394, and system interface connector
PC Card SlotOne Type I or Type II PCMCIA Card slot; 32-bit CardBus architecture
Media SlotOne shared slot for Secure Digital (SD) and Memory Stick®, Memory Stick PRO™ cards
Battery Options4Main Battery: Lithium ion (6-cell: 10.8V, 5200 mAh); up to 5.25 hoursBridge battery for warm swapping of primary battery: With second battery; up to 9 hours
AC AdapterAuto-sensing dual voltage support, 100-240V AC; DC 19V, 3.15A
Port Replicator (Optional)Two USB 2.0, external monitor, Ethernet (RJ-45), and DC-in
Dimensions and Weight11.5” (h) x 9.3” (w) x 1.1-1.4” (d); approximately 4.3 lbs. with Weight-Saver
Operating Temp. 41° F to 95° F (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-Operating Temp. 5° F to 140° F 8% to 85% relative humidity non-condensing
Service & Regulatory Information
Regulatory and Compliance
  • Emissions: EN55022 (CISPR22) Class B; FCC 15, Class B; FCC15C, 15.247; EN 300-328; ICES-003; Canada RSS-210
  • Immunity: EN55024 (1998); EN 301-489-17 V.1.1.1 (2000-9)
  • Safety: UL and cUL Listed, UL 1950, 3rd edition; TuV T-Mark, EN60950
  • Telecom: FCC Part 68; IC CS-03
WarrantyOne-year or three-year International Limited Warranty5; 24/7 technical support5; Fujitsu Premium Care Service Plans available
AccessoriesVisit www.shopfujitsu.com or call 1-800-FUJITSU for a complete listing of accessories.

  1. Accessible capacity may be less due to formatting, applications, and backup utilities.
  2. The internal modems on all Fujitsu pen tablet PCs from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
  3. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
  4. Battery life estimates reflect the results of Ziff Davis Business Winstone 2001 BatteryMark 1.0 as performed upon systems with maximum battery life settings enabled. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. External floppy disk, or optical drives, or hard drive usage may also have an impact on battery life.
  5. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.
