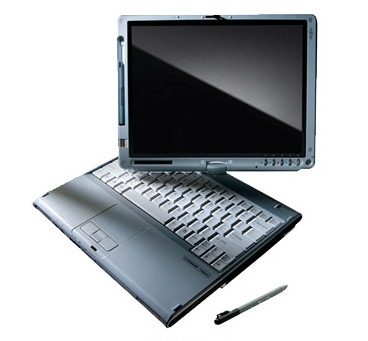

Fujitsu LifeBook T4220 Tablet PC Technical Specifications

---

The comfort and ease of a traditional notebook combined with the versatility of a tablet best describes the eye-catching LifeBook T4220 Tablet PC. Starting at 4.3 lbs with built-in modular bay, integrated wireless access, and the latest Intel^® Centrino^® Duo processor technology or optional Wi-Fi^® certified Atheros Super AG^® means you can instantly input and access information whenever, wherever, and however needed.

- Full-featured Tablet PC with hot-swappable modular bay device options for ultimate flexibility
- Bi-directional hinge fitted screen for greater convenience
- Superior security features for enhanced data and hardware protection
- Optimised VoIP communications using dual digital array built-in microphones.
- Health and environment friendliness with RoHS compliance

LifeBook T4220 Tablet PC Technical Specifications:

Model	T4220
Software
Operating Systems	Genuine Windows® XP Tablet PC Edition 2005 or Genuine Windows Vista® Business
Software	Microsoft® Office OneNote® 2007, Microsoft® Experience Pack for Tablet PC (XP Tablet PC Edition only), Google Desktop, Adobe® Reader®, Norton Internet Security1, EverNote Plus, Fujitsu Display Controls, Fujitsu HotKey Utility, Fujitsu Security Application Panel, Fujitsu Driver Update Utility, Softex OmniPass Fingerprint Utility , Shock Sensor Utility, TPM Drivers and Application CD
Optional Software	Depending on your system configuration, you may also receive the following: Microsoft® Office Small Business Edition 2007, Bluetooth Utility, CyberLink PowerDVD™, Roxio Easy Media Creator, CyberLink PowerProducer™ Note: Microsoft® Office applications require product activation
Key Specifications
Processor	Intel® Core™ 2 Duo Processor T7100 (1.8 GHz, 2 MB L2 cache, 800 MHz FSB) Intel® Core™ 2 Duo Processor T7250 (2.0 GHz, 2 MB L2 cache, 800 MHz FSB) Intel® Core™ 2 Duo Processor T7300 (2.0 GHz, 4 MB L2 cache, 800 MHz FSB) Intel® Core™ 2 Duo Processor T7500 (2.2 GHz, 4 MB L2 cache, 800 MHz FSB) Intel® Core™ 2 Duo Processor T7700 (2.4 GHz, 4 MB L2 cache, 800 MHz FSB) Intel® Core™  2 Duo Processor T8300 (2.40GHz, 3 MB L2 cache, 800MHz FSB)
Chipset	Intel®965GM + ICH8M
Memory	Two DIMM slots; max 4 GB, (actual 3.24 GB) 200-pin SO-DIMM, DDR2 667 MHz with dual channel support Note:  Minimum of 1 GB of system memory is required when choosing Genuine Windows Vista® Business
Intel® Turbo Memory	Optional 1GB of Intel® Turbo Memory (factory installation option) For Genuine Windows Vista® platform only, supports Windows® ReadyDrive™ and Windows® ReadyBoost™ features (Available after November 2007)
Display	LCD	12.1" XGA TFT indoor (Transmissive) display with wide viewing angles 12.1" XGA TFT indoor/outdoor (Transmissive) display with wide viewing angles
	Video Controller	Mobile Intel® GMA X3100 with Intel® Clear Video Technology enabling DX10 and MPEG-2; Dynamic Video Memory Technology (DVMT) responds to application requirements and efficiently allocates the proper amount of system memory (up to 256/384 MB) for optimal graphics and system performance.
	Resolution	Maximum internal display resolution: XGA 1024x768, 16M colors; External monitor resolution: 1600x1200, 16M colors Simultaneous display resolution: Same as default internal display resolution
Digitzer	Electromagnetic (Active)
Hard Drive2	120 GB, 80 GB, 60 GB, or 40 GB; 5400 rpm; Serial-ATA 150; shock-mounted; two-level password protection; Shock Sensor Utility locks the hard drive when detecting sudden impact, freefall, or vibration (may have to install this application separately)
Optical Drive	Options include: Modular Dual-Layer Multi-Format DVD Writer Up to: 4x DVD-R/+R DL, 8x DVD-R/+R/+RW, 6x DVD-RW, 5x DVD-RAM, 8x DVD-ROM, 24x CD-R, 10x CD-RW, 24x CD-ROM, or Modular DVD/CD-RW Combo Drive Up to: 8x DVD-ROM, 10x CD-RW, 24x CD-R, 24x CD-ROM, or Modular DVD-ROM Drive Up to: 8x DVD-ROM, 24x CD-ROM
Audio	Realtek ALC262 AC’97-compliant codec with 20-bit audio; built-in dual array digital microphones
Communication	Multinational3 56K4 V.90 modem; 10/100/1000 Gigabit Ethernet LAN
Wireless Communication	Intel® Wireless WiFi Link 4965AGN (802.11a/b/g/draft-n) or Atheros Super AG® Wireless LAN (802.11a/b/g); Wi-Fi® certified; dual diversity antennas Optional Bluetooth (v2.0) Personal Area Network (PAN) for file transfer and data synchronization with other Bluetooth devices
User Interfaces	82-key keyboard, spill-resistant; touch pad with left, right, and scroll buttons
Ports	Three USB 2.0, Infrared port (IrDA 1.1-compatible, 4 Mbps), External monitor/VGA, modem (RJ-11), Gigabit Ethernet (RJ-45), SD/Memory Stick PRO slot, docking connector, headphone/line-out jack, and microphone/line-in jack
Card Slots	One Type I/II PCMCIA slot, 32-bit PC CardBus architecture; One Smart Card slot; One shared slot for Memory Stick®, Memory Stick PRO™, or Secure Digital (SD) card
Security	LifeBook Application/Security panel AuthenTec Fingerprint Sensor with TruePrint Technology; 15cm/sec slide speed Trusted Platform Module (TPM), TCG 1.2-compliant Dedicated Smart Card slot Hard drive and BIOS passwords BIOS support for Computrace/LoJack theft recovery system (Service required) Security lock slot
Battery Life5	Main battery: Lithium ion (6-cell, 10.8V, 5200 mAh, 56.16 WHr) Modular Bay battery: Lithium ion (6-cell, 10.8V, 3800 mAh, 41 WHr) Bridge battery for warm swapping of primary battery XGA model: up to 4.25 hrs with main battery; up to 8 hrs using both main and modular bay battery
AC Adapter	Autosensing 100-240V AC, 80W, supplying 19V DC, 4.22A
Dimensions and Weight	11.5" x 9.3" x 1.1/1.4"; approx. 4.3 lbs. with weight saver
Operating Temperature	41°F to 95°F/5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-operating Temperature	5°F to 140°F/-15°C to 60°C, 8% to 85% relative humidity, non-condensing
Key Accessories	Port Replicator: Power/Suspend/Resume button, four USB 2.0, external video, DVI-D, modem (RJ-11), Gigabit Ethernet (RJ-45), docking connector, audio line-out
	For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
Compliance & Service Information
Compliance	FCC Part 15B Class B, and  FCC Part 15C, and FCC Part 15E; IC ICES-003 Class B and RSS-210 UL-cUL Listed FCC Part 68; IC CS-03 CE Marking (Not supported when configured with the WLAN module)
Warranty6	One or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available

1. Preinstalled with a free 90-day trial version of Symantec Norton Internet Security 2007. The 90-day trial version is activated upon user’s acceptance of software license agreement. After 90 days, the user must purchase a subscription from Symantec to download latest virus definitions.
2. One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
3. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
4. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
5. Battery life estimates reflect the results of BAPCo MobileMark2005 Productivity Workloads performed upon systems with battery life setting enabled on Windows^® XP operating systems. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
6. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.

Specifications are subject to change without notice.
