Fujitsu LifeBook T2010 Tablet PC Notebook Specifications


Fujitsu LifeBook T2010 Tablet PC Notebook Specifications

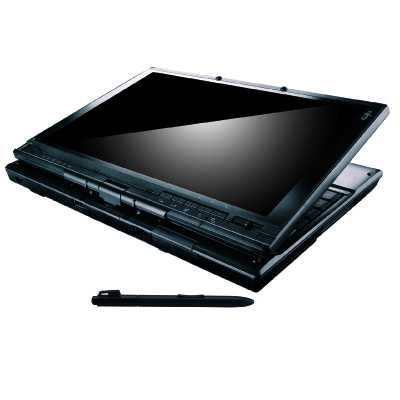

Fujitsu lifebook t2010 Tablet notebook

Sleek and ultra light, the new LifeBook T2010 Tablet PC now sports an integrated wireless Broadband5 option for Internet and network access virtually anywhere. Weighing approximately 3.5 lbs, a brilliant 12.1-inch widescreen, robust bi-directional hinge with magnesium-alloy housing plus comprehensive security features, the T2010 is perfect for frequent travelers who seek a reliable, powerful Tablet PC with all-day computing capability with the optional high-capacity battery to get your work done.

Fujitsu LifeBook T2010 wins the 2008 iF Design Award (International Forum Design Award).

The iF Design Award was founded in 1953, and is one of the world’s most prestigious design awards in the industry. Each year, the Hannover Council of Industrial Design in Germany (iF – International Forum Design Hannover) hosts a selection of institutions around the world to select the best design.

  • Unbelievably light – weighs around 1.58kg
  • 12.1-inch wide screen – wide viewing angle with high brightness of 300nits and AR coating ideal for indoor/outdoor use
  • Bi-directional hinge fitted screen for greater convenience
  • Health and Environment friendliness with RoHS compliance8
  • Superior security features for enhanced data and hardware protection

    LifeBook T2010 Tablet PC Technical Specifications


    ModelT2010
    Software
    Operating SystemsGenuine Windows XP Tablet PC Edition 2005 (available through June 2008)or Genuine Windows Vista Business
    SoftwareMicrosoft Office OneNote 2007, Microsoft Experience Pack for Tablet PC (XP Tablet PC Edition only), Google Desktop, Adobe Reader, Norton Internet Security1, EverNote Plus, Fujitsu Display Controls, Fujitsu HotKey Utility, Fujitsu Security Application Panel, Fujitsu Driver Update Utility, Softex OmniPass Fingerprint Utility, Shock Sensor Utility, TPM Drivers and Application CD
    Optional SoftwareDepending on your system configuration, you may also receive the following:Microsoft Office Small Business Edition 2007, Bluetooth Utility
    Docking station may come with the following applications: CyberLink PowerDVD,
    Roxio Easy Media Creator, CyberLink PowerProducer
    Note: Microsoft Office applications require product activation
    Key Specifications
    ProcessorIntel CoreTM 2 Duo Processor Ultra Low Voltage U7600 (1.2 GHz, 2 MB L2 cache, 533 MHz FSB), orIntel Core 2 Duo Processor Ultra Low Voltage U7500 (1.06 GHz) %26ndash; on select fixed configurations
    ChipsetIntel 965GM + ICH8M

    Memory

    Two DIMM slots; max 4 GB, (actual 3.24 GB) 200-pin SO-DIMM, DDR2 533 MHz with dual channel supportNote: Minimum of 1 GB of system memory is required when choosing Genuine Windows Vista Business

    Intel Turbo Memory

    Optional 1 GB of Intel Turbo Memory (factory installed option) for Genuine Windows Vista platform onlySupport for Windows ReadyDrive and Windows ReadyBoost features for Genuine Windows Vista platform only
    Display

    LCD

    12.1" WXGA TFT LED back-lit enhanced indoor display with wide viewing angles; Bi-directional hinge; 0.204 dot pitch, >220 nits brightnessOptional: 12.1" WXGA indoor/outdoor display with anti-reflective coating

    Video Controller

    Mobile Intel GMA X3100 with Intel Clear Video Technology enabling DX10 and MPEG-2; Dynamic Video Memory Technology (DVMT) responds to application requirements and efficiently allocates the proper amount of system memory (up to 384 MB) for optimal graphics and system performance.
    ResolutionMaximum internal display resolution: 1280 x 800, 16M colors;External monitor resolution: 1600 x 1200, 16M colors;
    Simultaneous display resolution: 1280 x 800
    DigitzerElectromagnetic (Active)
    HardDrive160 GB, 120 GB, 80 GB 5400 rpm; Serial-ATA 150; shock-mounted; two-level password protection; Shock Sensor Utility locks the hard drive when detecting sudden impact, freefall, or vibration (may have to install this application separately).
    Optical DriveNA
    AudioRealtek ALC262 AC'97-compliant codec with 20-bit audio; built-in dual array digital microphones
    CommunicationMultinational 56K4 V.90modem; 10/100/1000 Gigabit Ethernet LAN
    Wireless CommunicationIntel Wireless WiFi Link 4965AGN (802.11a/b/g/draft-n) orAtheros Super AG Wireless LAN (802.11a/b/g); Wi-Fi certified; dual diversity antennas.
    Optional Bluetooth (v2.0) Personal Area Network (PAN) for file transfer and data synchronization with other Bluetooth devices
    Wireless BroadbandOptional; AT&T wireless Broadband Connect (3G, HSUPA)7
    User Interfaces84-key spill-resistant keyboard, 19 mm key pitch, 3 mm key stroke; point stick with left and right mouse click
    PortsTwo USB 2.0, IEEE 1394, External monitor/VGA, modem (RJ-11) on select models, Gigabit Ethernet (RJ-45), docking connector, headphone/line-out jack, and microphone/line-in jack

    Card Slots

    One Type I/II PCMCIA slot, 32-bit PC CardBus architecture;One Smart Card slot;
    One shared slot for Memory Stick, Memory Stick PRO%26#8482;, or Secure Digital (SD) card
    SecurityLifeBook Application/Security panelAuthenTec Fingerprint Sensor with TruePrint Technology; 15cm/sec slide speed
    Trusted Platform Module (TPM), TCG 1.2-compliant
    Dedicated Smart Card slot
    Hard drive and BIOS passwords
    BIOS support for Computrace/LoJack theft recovery system (Service required)
    Security lock slot
    Docking StationOptional: 4x USB 2.0, Ethernet, VGA, DVI, line-out, DC, power/suspend/resume button, docking lock slot, system and docking combo lock slot; Optional DVD/CD-RW combo drive or dual-layer multi-format DVD writer (fixed bay)
    Battery5Main Lithium ion 6-cell battery (10.8V, 5800 mAh, 62.6 WHr), rated up to 9 hoursOptional high capacity Lithium ion 9-cell battery (10.8V, 8700 mAh, 93.9 WHr), rated up to 11 hours
    AC AdapterAutosensing 100-240V AC, 60W, supplying 16V DC, 3.75A
    Dimensions and Weight11.7" x 8.7" x 1.36"; approx. 3.52 lbs. with 6-cell battery; Additional 0.32 lbs. with 9-cell battery;Wireless Broadband model: 12.2" x 8.7" x 1.36"; approx. 3.67 lbs. with 6-cell battery
    Operating Temperature41°F to 95°F/5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
    Non-operating Temperature5°F to 140°F/-15°C to 60°C, 8% to 85% relative humidity, non-condensing
    Key AccessoriesFor a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
    Compliance & Service Information
    ComplianceFCC Part 15B Class B, and FCC Part 15C, and FCC Part 15E; IC ICES-003 Class B and RSS-210UL-cUL Listed
    FCC Part 68; IC CS-03
    CE Marking (Not supported when configured with the WLAN module)
    Warranty6One or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available

    1. Preinstalled with a free 90-day trial version of Symantec Norton Internet Security 2007. The 90-day trial version is activated upon user's acceptance of software license agreement. After 90 days, the user must purchase a subscription from Symantec to download latest virus definitions.
    2. One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
    3. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
    4. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
    5. Battery life estimates reflect the results of BAPCo MobileMark2005 Productivity Workloads performed upon systems with battery life setting enabled on Windows XP operating systems. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
    6. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.
    7. Wireless service is not included with notebook/tablet PC. Activation, credit approval, and 2-year minimumcommitment required. Monthly service fee, taxes,surcharges are extra. Actual connectivity is subject to wireless service provider's coverage area and may be affected by equipment, topography, signal strength,environmental considerations, and other factors. Service may vary significantly within buildings. Coverage not available everywhere:see wireless carrier's coverage map for details. Terms and Conditions and additional restrictions apply.

    Specifications are subject to change without notice.
