Gateway C-120X Convertible Notebook Tech Specifications


Gateway C-120X Convertible Notebook Tech Specifications

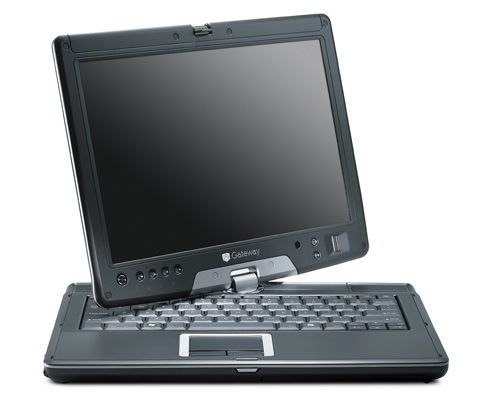

Gateway c-120x tablet notebook This is the Gateway® C-120X convertible notebook.

Spec at glance:

  • Intel® Core™ 2 Duo Processor Ultra-Low Voltage (ULV)
  • Intel® 945PM chipset, Intel® Graphics Media Accelerator 950
  • 12.1-inch WXGA TFT active matrix color display with anti-reflection polarizer
  • DDR2 dual channel memory expandable to 4 GB
  • 10/100/1000 (Gigabit) Ethernet, Intel® PRO/Wireless 3945 ABG 802.11 a/b/g
  • Integrated Bluetooth® 2.0
  • Media card reader, Digital card reader
  • Biometric fingerprint reader
  • Windows® XP Tablet PC Edition or Windows Vista™ Business
  • Weight starting at 4.5 pounds (depending on options selected)
  • High-impact magnesium case-work and metal alloy hinge and latch

Gateway C-120X Notebook Specifications
Part Number: 1014291RGateway C-120X Convertible Notebook




FeatureDescription
ProcessorIntel Core™ 2 Duo Ultra Low Voltage processor
  • 2 Execution cores
  • Integrated 2 MB Level 2 cache
  • 533 MHz FSB
Processor options
  • Intel® Core™ 2 Duo ULV processor U7500 (1.06 GHz)
  • Intel® Core™ 2 Duo ULV processor U7600 (1.20 GHz)
System architecture
  • Intel® Core™ 2 Duo Ultra Low Voltage processor
  • 2 execution cores
  • Integrated 2 MB level 2 cache
  • 533 MHz front side bus (FSB)
  • Intel® 945 GM chipset
  • Intel® Graphics Media Accelerator (GMA) 950
  • Dual channel DDR2 memory
BIOS
  • Phoenix® TrustedCore w/Vista TPM support (SP3)
  • 1 MB Flash ROM
  • SMBIOS (DMI) 2.3 support
  • Full ACPI 2.0 support
  • Supports WoLOM (Wake on Lan on Motherboard)
  • Support Boot from USB storage devices/flash memory
LCD display
  • 12.0-inch WXGA active matrix (TFT) LCD color display
  • Maximum panel resolution: 1280 × 800
  • Maximum color depth: 262,144
  • 3.3 V power supply
  • Anti-reflection polarizer for "sun-light readability"
  • Resistive film on panel for touch (finger input) capabilities
Memory
  • 667 MHz DDR2 SDRAM (runs at 533 MHz)
  • Dual channel
  • Two 200-pin SODIMM sockets on motherboard
  • Both end-user accessible
  • Expandable to 4 GB 533 or 667 MHz DDR2
Hard drives
  • Supports 2.5-inch hard drives
  • 9.5 mm height
  • 2.5-inch IDE
  • SATA 33/66/100 modes supported
  • Primary IDE controller
  • Master drive
  • User accessible hard drive
Optical drivesSupports 9.5 mm ultra slim optical drives
Video controllerIntel® Graphics Media Accelerator 950
  • Up to 128 MB shared memory (when 512 MB or more system memory present)
  • Maximum external resolution: 2048 × 1536
  • Microsoft DirectX 9 support
  • WDDM Support
External video support
  • Simultaneous LCD, and external display
  • Integrated LCD, or external display
High definition audio
  • Audio Chipset: SigmaTel 9205
  • Audio features:
    • SoundBlaster® Pro, MIDI and Windows® sound system compatible
    • 3D sound support
    • 64-channel wavetable synthesis
    • Audio AC '97 2.3 Compliant
  • Integrated speakers
  • Two audio jacks
    • Headphone
    • Microphone
  • Keyboard volume and mute controls
  • Digital array microphones located below display
ModemIntegrated V.92 56K modem (RJ-11 port)
Network optionsIntegrated Intel® 10/100/1000 Gigabit Ethernet
  • Supports Wake-on-LAN from S3, S4, S5 and Boot from LAN (S4 and S5 while on AC Only)
  • RJ-45 Port

Intel® PRO/Wireless 3945 ABG 802.11a/b/g Mini-card

  • Factory installed diversified antenna
  • Wi-Fi Protected Access (WPA) and WPA2 support
  • Wi-Fi Certified

Integrated Bluetooth 2.0

  • Factory installed diversified antenna
I/O Ports
  • Two - USB 2.0 ports
  • One - VGA port
  • One - Type II PC Card Bus slot
  • One - IEEE 1394 (4-pin)
  • 6-in-1 digital card reader
  • Microphone jack
  • Headphone jack
  • RJ-45 port
  • RJ-11 port
  • Power input
  • Cable dock connector
  • Digital array mic's
  • Ambient light sensor
Docking solution: optional cable dockPorts:
  • Three - USB 2.0 ports
  • VGA port
  • Parallel port (USB 1.1 interface)
  • Serial port (USB 1.1 interface)
  • IEEE 1394 (4-pin)
  • Microphone/Headphone jack
  • RJ-45
  • Power input
  • 40-pin cable connection to notebook
Memory card reader6-in-1



  • Memory Stick®
  • Memory Stick Pro®
  • Multimedia Card™
  • Secure Digital™
  • MiniSD (when used with adapter that is supplied with card)
  • RS-MMC (when used with adapter that is supplied with card)
Input DevicesKeyboard
  • 83-key keyboard
  • 2 mm key travel
  • 19 mm key pitch

Pointing Devices



  • Gateway EZ Pad® touchpad
  • Digitizer pen
  • Touchscreen
Security
  • Hardware security: Kensington lock
  • Software Security: Power-on password, user password, hard drive password
  • Anti-Theft: CompuTrace Anti-theft (BIOS version)
  • TPM 1.2 hardware
  • Biometric fingerprint reader: UPEK TCEDA3 module and UPEK Protector Suite software
Battery optionsRemovable, standard 4-cell Lithium Ion battery
  • Capacity: 38.48 watts (W)
  • Weight: .52 lbs.
  • Battery life: approximately 2.96 hours

Removable, high-capacity 6-cell Lithium Ion battery

  • Capacity: 57.72 W
  • Weight: .74 lbs.
  • Battery life: approximately 4.61 hours

Removable, high-capacity 8-cell Lithium Ion battery

  • Capacity: 76.96 W
  • Weight: NA
  • Battery life: NA

ACPI V2.0 Power Management support

Power supply optionsGateway common 65 W output AC adapter
  • 100 to 240 volt (V) input voltage
  • 50/60 Hz frequency
  • 0.82 pounds (with power cord)

Gateway common 90 W output AC adapter

  • 100 to 240 V input voltage
  • 50/60 Hz frequency
  • 1.25 pounds (with power cord)

Gateway common 120 W output AC adapter

  • 100 to 240 V input voltage
  • 50/60 Hz frequency
  • 1.64 pounds (with power cord)
System management
  • SM BIOS 2.3 support
  • ACPI V2.0 Power Management support
  • Wake-On-LAN (WOL OOB is not supported)
Environmental
  • Operating temperature: 32° to 104° F (0° to 40° C)
  • Storage temperature:-20° to 60° C (-4° to 140° F)
  • Operating humidity: 10% to 90% RH, non-condensing
Dimensions
  • 11.93-inches (L) × 9.96-inches (W) × 1.18 to 1.51-inches (H)
  • 303-millimeters (mm) (L) × 253 mm (W) × 29.9 to 38.4 mm (H)
Weight4.5 6 to 5.07 pounds

Note: Weight varies due to component options selected.

Note: This table provides minimum specifications. Actual specifications may vary according to the component options you selected. Specifications are subject to change regularly without notice or obligation. Components in the computer may have more than one supplier and may be custom engineered to Gateway® specifications, which can vary from retail.
