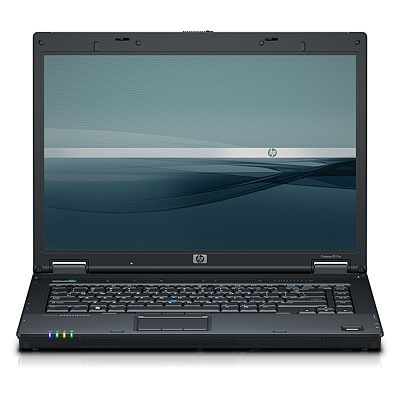

HP Compaq 8510w Mobile Workstation Technical Specifications


HP Compaq 8510w Mobile Workstation Technical Specifications

HP Compaq 8510w Mobile Workstation The HP Compaq 8510w Mobile Workstation gives you exceptional computational and visualization performance in a powerful yet portable 15.4-inch diagonal widescreen notebook weighing just 6.1 lbs and as thin as 1.1 in.

Workstation caliber graphics: - OpenGL, DirectX10, and Dual Link DVI (when docked) support deliver faster rendering and support ultra-high resolution displays. Blu-ray Drive plays high-definition (HD) content or stores up to 50GB on a dual-layer disc.

Powerful computing: - Run demanding applications with true 64-bit computing and support for up to 4 GB of memory. Intel Centrino Pro processor technology helps reduce the TCO of your PCs with built-in remote manageability and proactive security.

Workstation benefits:  - Workstation ISV certifications ensure reliable use of demanding applications. HP Performance Tuning Framework (PTF) provides custom workstation setup to better meet your requirements and increases select application performance.

HP Compaq 8510w Mobile Workstation Notebook Technical Specifications:

System features
See detailed specs
US QuickSpecs » html » pdf
Operating system
Genuine Windows Vista® Business
Genuine Windows Vista® Business with downgrade to Windows® XP Professional custom installed
FreeDOS
Processors available
Learn more about HP notebooks and Intel Centrino vPro technology

Intel® Core™ 2 Duo Processor T9300 (2.5 GHz, 800 MHz FSB, 6 MB L2 cache)
Intel® Core™ 2 Duo Processor T8300 (2.4 GHz, 800 MHz FSB, 3 MB L2 cache)
Intel® Core™ 2 Duo Processor T8100 (2.1 GHz, 800 MHz FSB, 3 MB L2 cache)
Intel® Core™ 2 Duo Processor T7800 (2.6 GHz, 800 MHz FSB, 4 MB L2 cache)
Intel® Core™ 2 Duo Processor T7700 (2.4 GHz, 800 MHz FSB, 4 MB L2 cache)
Intel® Core™ 2 Duo Processor T7500 (2.2 GHz, 800 MHz FSB, 4 MB L2 cache)
Intel® Core™ 2 Duo Processor T7300 (2.0 GHz, 800 MHz FSB, 4 MB L2 cache)
Intel® Core™ 2 Duo Processor T7250 (2.0 GHz, 800 MHz FSB, 2 MB L2 cache)
Chipset
Mobile Intel® PM965
Specialized Design
Intel® Centrino® with vPro™ processor technology capable on select models
Memory
Memory
1 GB 667 MHz DDR2 SDRAM
2 GB 667 MHz DDR2 SDRAM
4 GB 667 MHz DDR2 SDRAM
Memory upgrade
Upgradeable to 8 GB maximum (4 GB SODIMM in Slots 1 and 2)
Storage
Hard drive
120 GB 5400 rpm SATA
160 GB 5400 rpm SATA
250 GB 5400 rpm SATA
80 GB 7200 rpm SATA
160 GB 7200 rpm SATA
200 GB 7200 rpm SATA
Optical Drives
DVD
DVD/CD-RW combo
DVD+/-RW SuperMulti with Double Layer
LightScribe DVD+/-RW SuperMulti with Double Layer
Blu-Ray Disc DVD+/-RW SuperMulti DL
Graphics and Input/Output devices
Display size
15.4-inch diagonal WSXGA+ anti-glare WV); 15.4-inch diagonal WUXGA anti-glare WVA
Graphics
NVIDIA Quadro FX 570M graphics, with up to 256MB dedicated memory (512 MB TurboCache)
ATI Mobility FireGL V5600 graphics, with up to 256 MB dedicated memory (512 MB HyperMemory)
Microsoft DirectX 10 support
OpenGL support
Audio, Slots, and Ports
Ports
External:
4 USB 2.0
1 1394a
1 RJ-11
1 RJ-45
1 microphone in
1 headphone/line-out
1 docking connector
1 HDMI
1 battery connector
Rear:
1 external VGA monitor; 1 AC power
Slots
1 Type I/II PC card
1 integrated Smart Card Reader
1 secure digital
Audio
High Definition Audio support w/24-bit DAC; Integrated stereo speakers; Integrated microphone; Touch-sensitive controls for volume up, volume down, and mute; Stereo headphone/line out; Stereo microphone in
Communication features
Network interface
Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
Modem
56K V.92 modem with digital line guard
Wireless
Intel 802.11a/b/g draft n; Intel 802.11a/b/g; Broadcom 802.11a/b/g; Bluetooth 2.0
Broadband service provider
AT&T Wireless BroadbandConnect; Sprint Mobile Broadband; Verizon Wireless BroadbandAccess
Product specifications
Weight
6.1 lb (2.77 kg)
Dimensions (w x d x h)
14.00 x 10.24 x 1.10 in (355.60 x 260.10 x 27.94 mm)
Energy Efficiency
Energy Efficiency
ENERGY STAR® qualified
Battery
8-cell (73 WHr) Lithium-Ion
Power supply
External 90-watt Smart AC adapter, 6-foot (1.8-meter) power cord included.; Total length including external AC adapter is 12 feet (3.66 meter).; HP Fast Charge
Manageability
Security management
HP ProtectTools Security Manager; HP Fingerprint Sensor; Integrated Smart Card Reader; Configuration Control Hardware; Memory Change Alert; Ownership Tag; Setup Password; Power-On Password; TPM 1.2 Embedded Security Chip (disabled where use is restricted by law); TPM Enhanced DriveLock (disabled where use is restricted by law); HP Disk Sanitizer; HP 3D DriveGuard; Kensington Lock Slot; Optional Privacy Filter
Service and Support
Warranty Feature
HP Services offers limited 3-year standard parts and labor onsite, next business day warranty, and toll-free 7 x 24 hardware technical phone support; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.
