SONY PCG-C1XF Main Specification


SONY PCG-C1XF Main Specification

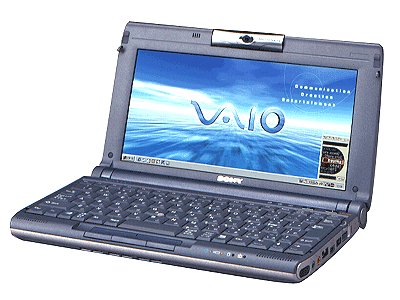

SONY PCG-C1XF SONY PCG-C1XF, PII 400MHz, 440ZX, 64MB, 12GB Harddisk, 8.9 Type and ultra wide XGA (1024*480), NeoMagic MagicMedia256AV(2.5MB), Camera 1/6 type CCD 410,000 pixels (f=2.8mm F2.8), 56K Modem
Model
PCG-C1XF
ProcessorMobile Pentium (R) II processor 400MHz (Built-in primary cash 32KB)
Chip set440ZX AGP chip set
System bus clock66MHz
Secondary cache256KB (built-in to processor tip/chip)
Hard diskApproximately 12GB (Ultra ATA) (C: Approximately 8GB/D: Approximately 4GB) *1
Main memory Standard/maximumSDRAM 64MB (onboard)/maximum 128MB
Expansion storage slot (The number of empty slots)Private memory slot ×1(1)
Graphics Accelerator128bit high-speed graphic accelerator NeoMagic MagicMedia256AV (NM2200)
Video memory2.5MB (built-in to video tip/chip)
Built-in video camera1/6 type CCD 410,000 pixels (f=2.8mm F2.8)
Liquid Crystal Display8.9 Type and ultra wide XGA (1,024×480 dot) correspondence, TFT color liquid crystal
Indicatory mode1,024×480 (largest approximately 1,677 ten thousand color *2) /640×480 (largest approximately 1,677 ten thousand color *2), 800×600 (largest approximately 1,677 ten thousand color *2 *3), 1,024×768 (largest approximately 1,677 ten thousand color *2*3)
External display output1,280×1024 (256 colors) /1,024×768 (approximately 1,677 ten thousand colors) /800×600 (approximately 1,677 ten thousand colors)
Dual Display When indicating (example)External display 1,024×768 (256 colors) - Substance LCD indicatory 1,024×480 (65,536 colors) External display 800×600 (65,536 colors) - Substance LCD indicatory 1,024×480 (65,536 colors)
Floppy disk DriveExternal by way of USB, Bundled 3.5 types (1.44MB/1.2MB/720KB) floppy disk drive
CD-ROM driveSelling separately PCGA-CD51 (PCGA-CD5 enabled), PC card connection
External connected terminal- Infrared ray communication port (IrDA standard conformity Ver.1.1) ×1 ?Display output outside ?USB×1? (private mini terminal) ×1 ?i.LINK TM (IEEE1394) terminal S400 (4 pins) ×1 - The modular jack ×1 for modem - Microphone input (monaural mini- jack) ×1 - Stereo headphone output (MEGA BASS correspondence) ×1
PC card slotTypeII×1 and CardBus correspondence
Audio functionWindows sound system interchangeability, Built-in stereo speaker and built-in microphone, XG corresponding hardware MIDI sound source, MEGA BASS (silent boost) function (only headphone output)
Built-in FAX/modemLargest 56kbps *4 (V.90/K56flex TM automatic correspondence) /Maximum 14.4kbps (at the time of FAX)
Keyboard/ Pointing deviceApproximately 17mm pitch /Key stroke approximately 2mm/86 key /Scroll functional corresponding stick type pointing device
Main accessory *7AC adapter (PCGA-AC5N equal item), AC cord/code, battery pack (S) (PCGA-BP51A equal item) *5, USB floppy disk drive (USB cable one somatotype), Telephone cord/code (modular cable), Display adapter (video output terminal equipped *6), Recovery CD (3 groups)
Power sourceAC adapter or lithium ion battery
Electric power consumption40W
The energy efficiency which is based on energy-saving lawS division 0.0043
Battery Operating time *8Approximately 1.5 hour ~2.5 times (battery pack (S)) Approximately 3 hour ~4 times (battery pack (L)) Approximately 6 hour ~8 times (battery pack (LLL))
Battery Charge time *9(Also when turning on/off) Battery pack (S) approximately 1.5 hours (approximately 85%), approximately 2.5 hours (approximately 100%), Battery pack (L) approximately 3 hours (approximately 85%), approximately 5 hours (approximately 100%), Battery pack (LLL) approximately 6 hours (approximately 85%), approximately 9 hours (approximately 100%)
Warm humidity conditionWhen operating 5~35? (temperature gradient 10?/time below) The 20%~80% (however as for the humidity in thing, and the 35? which do not become wet with dew 65% or less)
Substance external size (Largest spine not being included) /MassApproximately width 248mm× height 27mm (the front most it is thin section. Rear section 29mm) ## Depth 153mm (spine not being included) /Approximately 1.0kg (battery pack (S) when loading)
* It is numerical value when 11 GB was calculated at 1,000,000,000 byte. Windows (R) as for the capacity which can be recognized from the system approximately 11.2GB (C: Approximately 7.5GB/D: Approximately 3.7GB) It becomes. With the dither ring function of the *2 graphic accelerator actualization. Through *3 hypothetical picture mode, or the display adapter of attachment, when external display is used. Distinguishing *4 K56flex and V.90 automatically, it changes. 56kbps is theoretical value at the time of data reception. At the time of data transmission with respect to 33.6kbps of standard reaches maximum. *5 capacity approximately 20Wh. Former PCGA-BP51 (capacity approximately 17Wh) it is available. However, battery drive time becomes shorter than BP51A. *6 video output (only NTSC) outputs the territory of the 640×400 dot of the desktop picture (in the hypothetical scroll correspondence). In addition you cannot use with computer display simultaneously. The *7 software case does not belong. Please utilize PCGA-CP1 of selling separately. *8 battery drive time at the time of economical electrical mode. There are times when it differs from the above-mentioned statement time depending upon usage condition and setting etc. In addition, the battery pack (S) with the battery pack (L) the battery pack (LLL) combined use is not possible. At the time of *9 power source on charge possibility.
